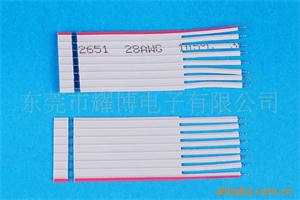

UL2651 PH2.0 2.54 Flat Cable
說 明 UL&CSA GRADE
UL型號：2651 UL STYLE:2651
額定溫度：105°C Rate temperature : 105°C
額定電壓：300V Rate voltage : 300V
絕 緣：聚氯乙烯（PVC） Insulation：PVC
導體材質：鍍錫銅 Conductor material：BARE COPPER CONDUCTOR
阻燃等級：VW-1及CSAFT1、FT2 Flame test : VW-1 、CSAFT1、FT2
性 能 ELECTRONIC CHARACTERISTICS
耐 電 壓：2500V Spark test : 2500V
絕緣電阻：100 M-km Insulation resistance : Minimum 100 M-km
抗張強度：1500PSI Tensile strength：1500PSI
伸 長 率：100% Elongation：100%
應用
適用于一般電器、電腦內部連線
USAGE
Used for most electronic equipments which require higher current as Jumper wire or shortdistance connection

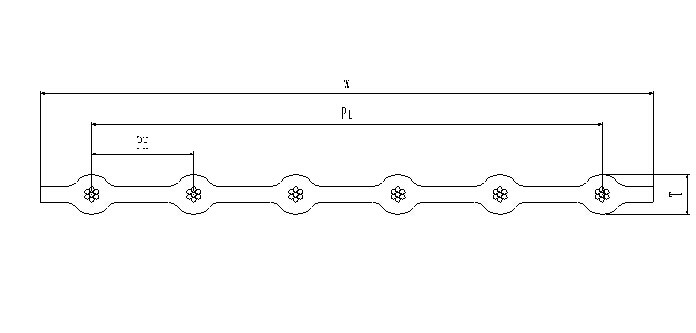

構造 Construction
參數 Construction Table
|
NO.of |
Size of conductor |
Thickness |
Width |
INSU.RESISTANCE |
||
|
芯線數 |
AWG |
Composition |
（mm±0.05） |
Pith=2.0 |
Pith=2.54 |
Ω/KM(20°C) |
|
2 |
28 |
7/0.127 |
0.9 |
4 |
5.08 |
237 |
|
3 |
6 |
7.62 |
||||
|
4 |
8 |
10.16 |
||||
|
5 |
10 |
12.7 |
||||
|
6 |
12 |
15.24 |
||||
|
7 |
14 |
17.78 |
||||
|
8 |
16 |
20.32 |
||||
|
9 |
18 |
22.86 |
||||
|
10 |
20 |
25.4 |
||||
|
11 |
22 |
27.94 |
||||
|
12 |
24 |
30.48 |
||||
|
13 |
26 |
33.02 |
||||
|
14 |
28 |
35.56 |
||||
|
15 |
30 |
38.1 |
||||
|
16 |
32 |
40.64 |
||||
|
NO.of |
Size of conductor |
Thickness |
Width |
INSU.RESISTANCE |
||
|
芯線數 |
AWG |
Composition |
（mm±0.05） |
Pith=2.0 |
Pith=2.54 |
Ω/KM(20°C) |
|
2 |
26 |
7/0.160 |
1.0 |
4 |
5.08 |
149 |
|
3 |
6 |
7.62 |
||||
|
4 |
8 |
10.16 |
||||
|
5 |
10 |
12.7 |
||||
|
6 |
12 |
15.24 |
||||
|
7 |
14 |
17.78 |
||||
|
8 |
16 |
20.32 |
||||
|
9 |
18 |
22.86 |
||||
|
10 |
20 |
25.4 |
||||
|
11 |
22 |
27.94 |
||||
|
12 |
24 |
30.48 |
||||
|
13 |
26 |
33.02 |
||||
|
14 |
28 |
35.56 |
||||
|
15 |
30 |
38.1 |
||||
|
16 |
32 |
40.64 |
||||
|
NO.of |
Size of conductor |
Thickness |
Width |
INSU.RESISTANCE |
||
|
芯線數 |
AWG |
Composition |
（mm±0.05） |
Pith=2.0 |
Pith=2.54 |
Ω/KM(20°C) |
|
2 |
24 |
7/0.20 |
1.2 |
4 |
5.08 |
93.2 |
|
3 |
6 |
7.62 |
||||
|
4 |
8 |
10.16 |
||||
|
5 |
10 |
12.7 |
||||
|
6 |
12 |
15.24 |
||||
|
7 |
14 |
17.78 |
||||
|
8 |
16 |
20.32 |
||||
|
9 |
18 |
22.86 |
||||
|
10 |
20 |
25.4 |
||||
|
11 |
22 |
27.94 |
||||
|
12 |
24 |
30.48 |
||||
|
13 |
26 |
33.02 |
||||
|
14 |
28 |
35.56 |
||||
|
15 |
30 |
38.1 |
||||
|
16 |
32 |
40.64 |
||||
