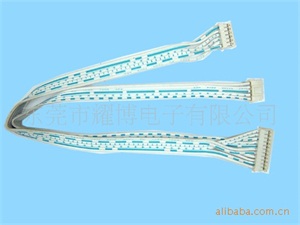

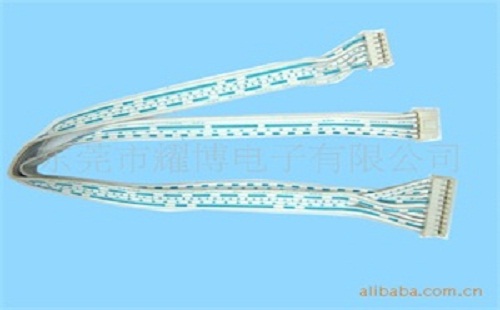

UL2468 Flat Cable
說 明 UL&CSA GRADE
UL型號：2468 UL STYLE:2468
額定溫度：80°C Rate temperature : 80°C
額定電壓：300V Rate voltage : 300V
絕 緣：聚氯乙烯（PVC） Insulation：PVC
導體材質：鍍錫銅 Conductor material：BARE COPPER CONDUCTOR
阻燃等級：VW-1及CSAFT1、FT2 Flame test : VW-1 、CSAFT1、FT2
性 能 ELECTRONIC CHARACTERISTICS
耐 電 壓：2500V Spark test : 2500V
絕緣電阻：100 M-km Insulation resistance : Minimum 100 M-km
抗張強度：1500PSI Tensile strength：1500PSI
伸 長 率：100% Elongation：100%
應用
適用于一般電器、電腦內部連線
USAGE
Used for most electronic equipments which require higher current as Jumper wire or shortdistance connection

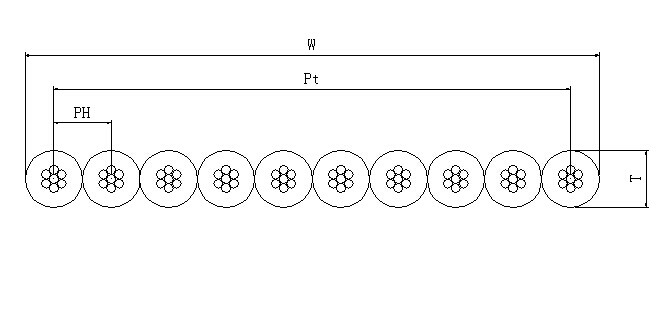

構造 Construction
參數 Construction Table
|
NO.of |
Size of conductor |
Thickness |
Width |
INSU.RESISTANCE |
||
|
芯線數 |
AWG |
Composition |
（mm±0.05） |
Pith=1.3 |
Ω/KM(20°C) |
|
|
2 |
28 |
7/0.127 |
1.3 |
2.6 |
237 |
|
|
3 |
7/0.127 |
3.9 |
237 |
|||
|
4 |
7/0.127 |
5.2 |
237 |
|||
|
5 |
7/0.127 |
6.5 |
237 |
|||
|
6 |
7/0.127 |
7.8 |
237 |
|||
|
7 |
7/0.127 |
9.1 |
237 |
|||
|
8 |
7/0.127 |
10.4 |
237 |
|||
|
9 |
7/0.127 |
11.7 |
237 |
|||
|
10 |
7/0.127 |
13 |
237 |
|||
|
11 |
7/0.127 |
14.3 |
237 |
|||
|
12 |
7/0.127 |
15.6 |
237 |
|||
|
13 |
7/0.127 |
16.9 |
237 |
|||
|
14 |
7/0.127 |
18.2 |
237 |
|||
|
NO.of |
Size of conductor |
Thickness |
Width |
INSU.RESISTANCE |
||
|
芯線數 |
AWG |
Composition |
（mm±0.05） |
Pith=1.5 |
Ω/KM(20°C) |
|
|
2 |
26 |
7/0.160 |
1.4 |
3 |
149 |
|
|
3 |
7/0.160 |
4.5 |
149 |
|||
|
4 |
7/0.160 |
6 |
149 |
|||
|
5 |
7/0.160 |
7.5 |
149 |
|||
|
6 |
7/0.160 |
9 |
149 |
|||
|
7 |
7/0.160 |
10.5 |
149 |
|||
|
8 |
7/0.160 |
12 |
149 |
|||
|
9 |
7/0.160 |
13.5 |
149 |
|||
|
10 |
7/0.160 |
15 |
149 |
|||
|
11 |
7/0.160 |
16.5 |
149 |
|||
|
12 |
7/0.160 |
18 |
149 |
|||
|
13 |
7/0.160 |
19.5 |
149 |
|||
|
14 |
7/0.160 |
21 |
149 |
|||
|
NO.of |
Size of conductor |
Thickness |
Width |
INSU.RESISTANCE |
||
|
芯線數 |
AWG |
Composition |
（mm±0.05） |
Pith=1.5 |
Pith=1.6 |
Ω/KM(20°C) |
|
2 |
24 |
11/0.160 |
1.5 |
3 |
3.2 |
93.2 |
|
3 |
11/0.160 |
4.5 |
4.8 |
93.2 |
||
|
4 |
11/0.160 |
6 |
6.4 |
93.2 |
||
|
5 |
11/0.160 |
7.5 |
8 |
93.2 |
||
|
6 |
11/0.160 |
9 |
9.6 |
93.2 |
||
|
7 |
11/0.160 |
10.5 |
11.2 |
93.2 |
||
|
8 |
11/0.160 |
12 |
12.8 |
93.2 |
||
|
9 |
11/0.160 |
13.5 |
14.4 |
93.2 |
||
|
10 |
11/0.160 |
15 |
16 |
93.2 |
||
|
11 |
11/0.160 |
16.5 |
17.6 |
93.2 |
||
|
12 |
11/0.160 |
18 |
19.2 |
93.2 |
||
|
13 |
11/0.160 |
19.5 |
20.8 |
93.2 |
||
|
14 |
11/0.160 |
21 |
22.4 |
93.2 |
||
|
NO.of |
Size of conductor |
Thickness |
Width |
INSU.RESISTANCE |
||
|
芯線數 |
AWG |
Composition |
（mm±0.05） |
Pith=1.7 |
Ω/KM(20°C) |
|
|
2 |
22 |
17/0.160 |
1.7 |
3.4 |
55 |
|
|
3 |
17/0.160 |
5.1 |
55 |
|||
|
4 |
17/0.160 |
6.8 |
55 |
|||
|
5 |
17/0.160 |
8.5 |
55 |
|||
|
6 |
17/0.160 |
10.2 |
55 |
|||
|
7 |
17/0.160 |
11.9 |
55 |
|||
|
8 |
17/0.160 |
13.6 |
55 |
|||
|
9 |
17/0.160 |
15.3 |
55 |
|||
|
10 |
17/0.160 |
17 |
55 |
|||
|
11 |
17/0.160 |
18.7 |
55 |
|||
|
12 |
17/0.160 |
20.4 |
55 |
|||
|
13 |
17/0.160 |
22.1 |
55 |
|||
|
14 |
17/0.160 |
23.8 |
55 |
|||
