UL 4389 Flat Cable
說 明 DESCRIPTION
UL型號：4389 UL STYLE:4389
額定溫度：-60°C～+150°C/200°C Rate temperature : -60°C～+150°C/200°C
額定電壓：600V Rate voltage : 600V
絕 緣：聚全氧乙丙烯 Insulation：FEP
外 被：硅橡膠 Jacket：Silicone
導 體：30～10AWG鍍錫銅線 Conductor：30 to 10 AWG Tinned copper
外徑容差：±0.10mm O.D.Allowance:：±0.10mm
顏 色：黑 棕 紅 橙 黃 綠 藍 紫 灰 白 Aviable：Black Brown Red Orange Yellow Green 黃綠等。 Blue Violet Gray White Green∕Yellow，etc.
性 能 ELECTRONIC CHARACTERISTICS
耐高溫、低溫、酸、堿、油、耐燃燒、老化、 High temperature resistance、low temperature
耐候性、防霧以及線的柔軟性、電絕緣性、 resistance、anti-acid and alkali、fire and aging
滿足UL758、UL1581、RoHs要求 resistance、the inoxid-izability、resistance of humidity、
the fine electric insulation and flexible performance
UL758＆UL1581 RoHs compliance.
應用 APPLICATION
適用于家用電器、照明燈具、電子設備、溫 Apply to Household appliance、lllumination＆Lighting
度偉感器、航天、航空、軍用產品、冶金化 ＆Headlamp、electric machines、tempurature sensor
工、汽車船舶、電力安裝等連接線 、Military series、Metallurgy Chemical series、
Motor cars＆Ships Electrical Installation.

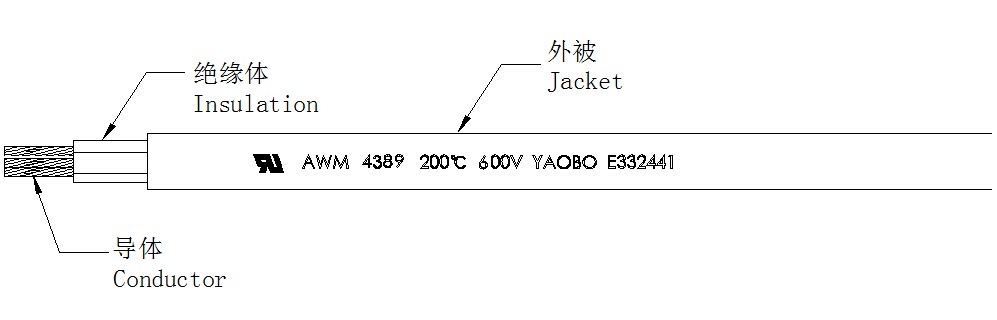

構造 Construction
參數 Construction Table
|
導體尺寸 Size of conductor |
絕緣體 Insulation |
電氣特性 Electrical Characteristic |
包裝 Packing |
||||||
|
線號 AWG |
線數/線徑
Composition |
直徑 Diameter mm |
絕緣厚度
THK. |
芯線外徑 Diameler mm |
外被厚度 Jacket THK. mm |
完成外經 Over Diameter mm |
導體電阻 Condutor Resislance Ω/KM 20℃) |
允許電流 Permissible ampacity 20℃-AMR |
米∕卷 m∕coils |
|
22x2C |
19x1.150 |
0.76 |
0.46 |
1.68 |
1.14 |
5.64 |
54.3 |
8.73 |
100 |
|
20 x2C |
19x0.190 |
0.96 |
1.88 |
6.04 |
34.6 |
13.87 |
100 |
||
|
18 x2C |
19x0.235 |
1.18 |
2.10 |
6.48 |
21.8 |
22.02 |
100 |
||
|
16 x2C |
19x0.300 |
1.51 |
2.43 |
7.14 |
13.5 |
35.05 |
50 |
||
|
22 x3C |
19x0.150 |
0.76 |
1.68 |
5.64 |
54.3 |
8.73 |
100 |
||
|
20 x3C |
19x0.190 |
0.96 |
1.88 |
6.04 |
34.6 |
13.87 |
100 |
||
|
18 x3C |
19x0.235 |
1.18 |
2.10 |
6.98 |
21.8 |
22.02 |
100 |
||
|
16 x3C |
19x0.300 |
1.51 |
2.43 |
7.14 |
13.5 |
35.05 |
50 |
||
|
22 x4C |
19x0.150 |
0.76 |
1.68 |
6.16 |
54.3 |
8.73 |
100 |
||
|
20x4C |
19x0.190 |
0.96 |
1.88 |
6.62 |
34.6 |
13.87 |
100 |
||
|
18 x4C |
19x0.235 |
1.18 |
2.10 |
7.48 |
21.8 |
22.02 |
50 |
||
|
16 x4C |
19x0.300 |
1.51 |
2.43 |
7.89 |
13.5 |
35.05 |
50 |
||
|
18 x5C |
19x0.235 |
1.18 |
2.10 |
7.70 |
21.8 |
22.02 |
50 |
||
|
18 x6C |
19x0.235 |
1.18 |
2.10 |
8.22 |
21.8 |
22.02 |
50 |
||
|
18 x7C |
19x0.235 |
1.18 |
2.10 |
8.70 |
21.8 |
22.02 |
50 |
||
|
18 x8C |
19x0.235 |
1.18 |
2.10 |
1.52 |
9.90 |
21.8 |
22.02 |
50 |
|
